Product Details:
|
| Viscosity: | 200-500 | Relative Density: | 1.04 |
|---|
PROFILE

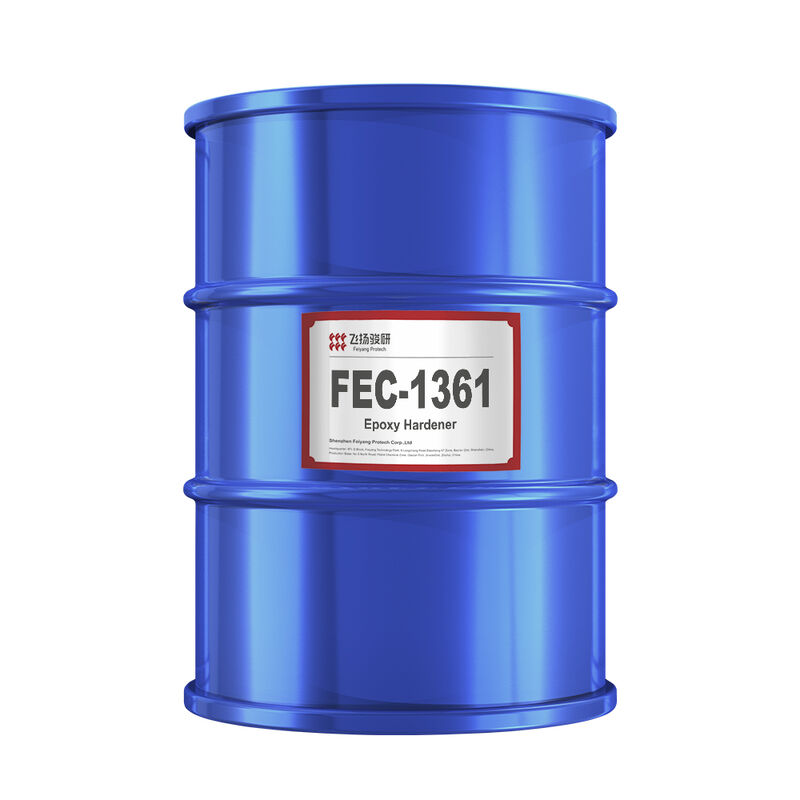

FEC-1361(Equivalent to Ancamine 2726) is a mixed amine-modified hardener.
PROPERTY
Corrosion-resistant, low viscosity, high gloss, fast reaction.
APPLICATIONS
Used for floor topcoat.
INDEX
| Appearance | Colorless transparent viscous liquid |
| Viscosity:25℃ | 200-500mPa.s |
| Relative density:25℃ | 1.06 |
| Amine value | 290±20mgKOH/g |
| Relative density(25℃) | 1.04 |
| Active Hydrogen Equivalent Weight (AHEW) | 104 |
| Ratio(For E51 100g) | 100/60 |
| Gel time(25℃, 150g) | 15-30min |
| Drying time(25℃, 3mm) | 1-2h |
| Shore D(3mm, 24h) | ≥80D |
Basic data is based on the E-51 epoxy resin (E-51 is bisphenol A type, with an epoxy equivalent of 180-190).
CURING CHARACTERISTICS
1. Curing exotherm:
FEC-1316 was mixed with Bispheno1-A epoxy resin with an oxygen equivalent of about 190, with a total weight of 150g. The curing exotherm measured at a room temperature of 23℃ is shown in the table below:
| Ratio=Epoxy resin/Hardener | 100/60 |
| Peak generate heat time | 22min |
| Peak generate heat temperature | 122℃ |
| Pot-life | 20-30min |
2. Curing and drying properties:
FEC-1316 was mixed with Bispheno1-A epoxy resin with an oxygen equivalent of about 190 according to a certain ratio. The curing and drying properties were measured using an RCI drying tester at 23°C and 5°C, as shown in the following table: Dry film thickness: 150µm
| Ratio=Epoxy resin/Hardener | 100/60 | |
| 23℃ | Touch drying time | 2.5h |
| Initial drying time | 6h | |
| Complete drying time | 12h | |
| 5℃ | Touch drying time | 7h |
| Initial drying time | 24h | |
| Complete drying time | 38h | |
3. Physical properties after curing:
YD-8252 was mixed with Bispheno1-A epoxy resin with an oxygen equivalent of about 190, and after a 7-day curing period at a room temperature of 23℃, the physical properties measured are as follows.(Based on JIS K6911)
| Ratio=Epoxy resin/Hardener | 100/60 |
| Tensile strength | 540kg/cm2 |
| Bending strength | 620kg/cm2 |
| Compressive strength | 800g/cm2 |
| Elongation | 3.5% |
| Impact strength | 174kg/cm/cm2 |
| Shore D | 83D |
| Heat deflection temperature | 47℃ |
PACKING
25Kgs/Drum(plastic drum), 200Kgs/Drum(carbon steel drum)
SHELF LIFE
Packaged in plastic or carbon steel containers, protected by nitrogen, and stored sealed at room temperature. The shelf life is one year.
STORAGE
Should be sealed in the original packaging container and placed in a dry place at 0-40℃ (the temperature cannot be lower than 0℃). Do not place it in the sun.
NOTICE
Please take safety precautions when using this product and refer to the Product Safety Data Sheet (SDS).
