Product Details:
|
| Viscosity: | 20000-50000 | Relative Density: | 1.06 |
|---|
PROFILE

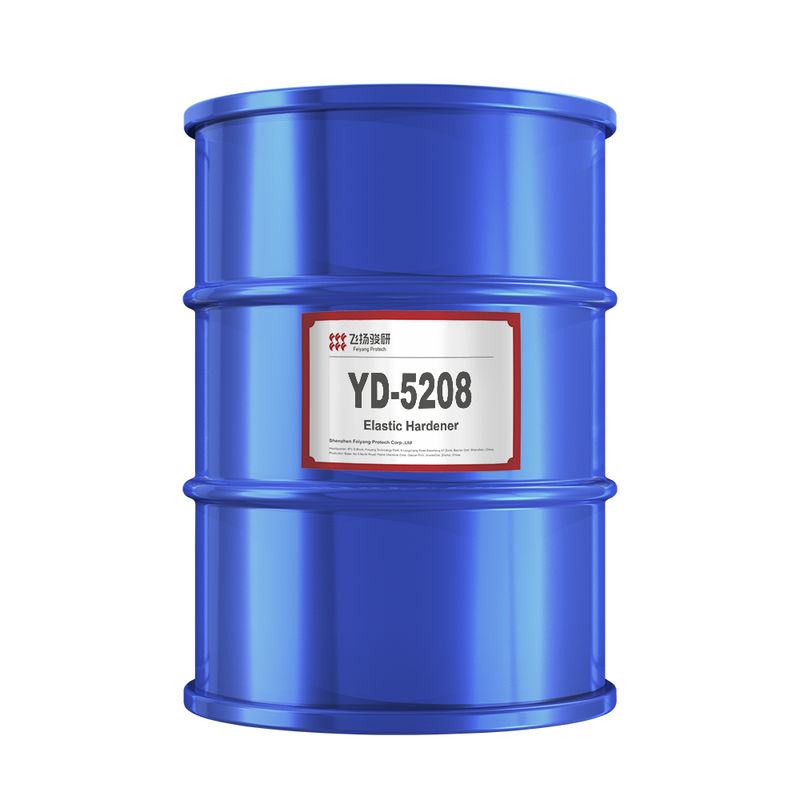

YD-5208 is a cycloaliphatic amine modified epoxy hardener, colorless transparent liquid, free of APEO and formaldehyde, with excellent resistance to yellowing. It is suitable for use in zipper coating, fishing rod adhesive, composite materials and other fields.
ADVANTAGES
1.Good resistance to yellowing and excellent adhesion.
2.Hardness and strength increase quickly in the early stage.
3.Good chemical resistance.
APPLICATIONS
Used for zipper coating, adhesive, heavy-duty anti-corrosion and other industrial coatings.
STORAGE
It should be sealed in the original packaging container and placed in a dry location between 0-40 ℃(temperature should not be lower than 0 ℃), and should not be placed in sunlight.
INDEX
| Appearance | Colorless transparent liquid |
| Viscosity:25℃ | 20000-50000mPa.s |
| Relative density:25℃ | 1.06 |
| Active Hydrogen Equivalent Weight (AHEW) | 160 |
| Grams of epoxy curing agent required for 100 grams of E-51 epoxy resin | 80-100g |
PROPERTIES
| Pot life 25℃, 100g | 15-30 minutes |
| Film drying time 3㎜,25℃ | 1-2h |
| Shore D hardness (after 48 hours) | ＞80D |
| Pencil hardness | 2H |
| Two times powder shear | >15MPa |
| Cross-cut adhesion | 0-1 |
Basic data is based on the E-51 epoxy resin (E-51 is bisphenol A type, with an epoxy equivalent of 180-190).
Note: ① Mix 901*75(75% solid bisphenol A epoxy resin containing xylene)/YD-5208/methanol=3/1/0.5 and stir evenly, apply a 50 μm coating on the tinplate, cured at 110℃×1h, and the adhesion based hundred grid test.
